Industrial Motor Driven Siren — 0.5km to 16km Range — 9 Models — OISD-117 Compliant
Warning Systems Shift Change Voice Announcement Products Engineering 📞 +91 89895 67878 Request Quote
Home› Products› Motor Driven Siren
Motor Driven Siren

India's Loudest
Industrial Siren.

The electric motor driven siren is the standard choice for outdoor factory emergency warning. Mechanical impeller design, unmatched sound output, and a proven record across India's most demanding industrial environments.

Request Quote +91 89895 67878
9
Models Available
16km
Max Range
126dB
Max Output
500+
Installations
Siren Coverage Radius — by Model
Siren Coverage Radius by Model Siren 16 km 16 km PC-MS-3D-1600 8 km PC-MS-3D-800 5 km ★ PC-MS-3D-500 2 km PC-MS-1D-200 500 m PC-MS-1S-050 ★ Most popular model — suits most Indian factory sites

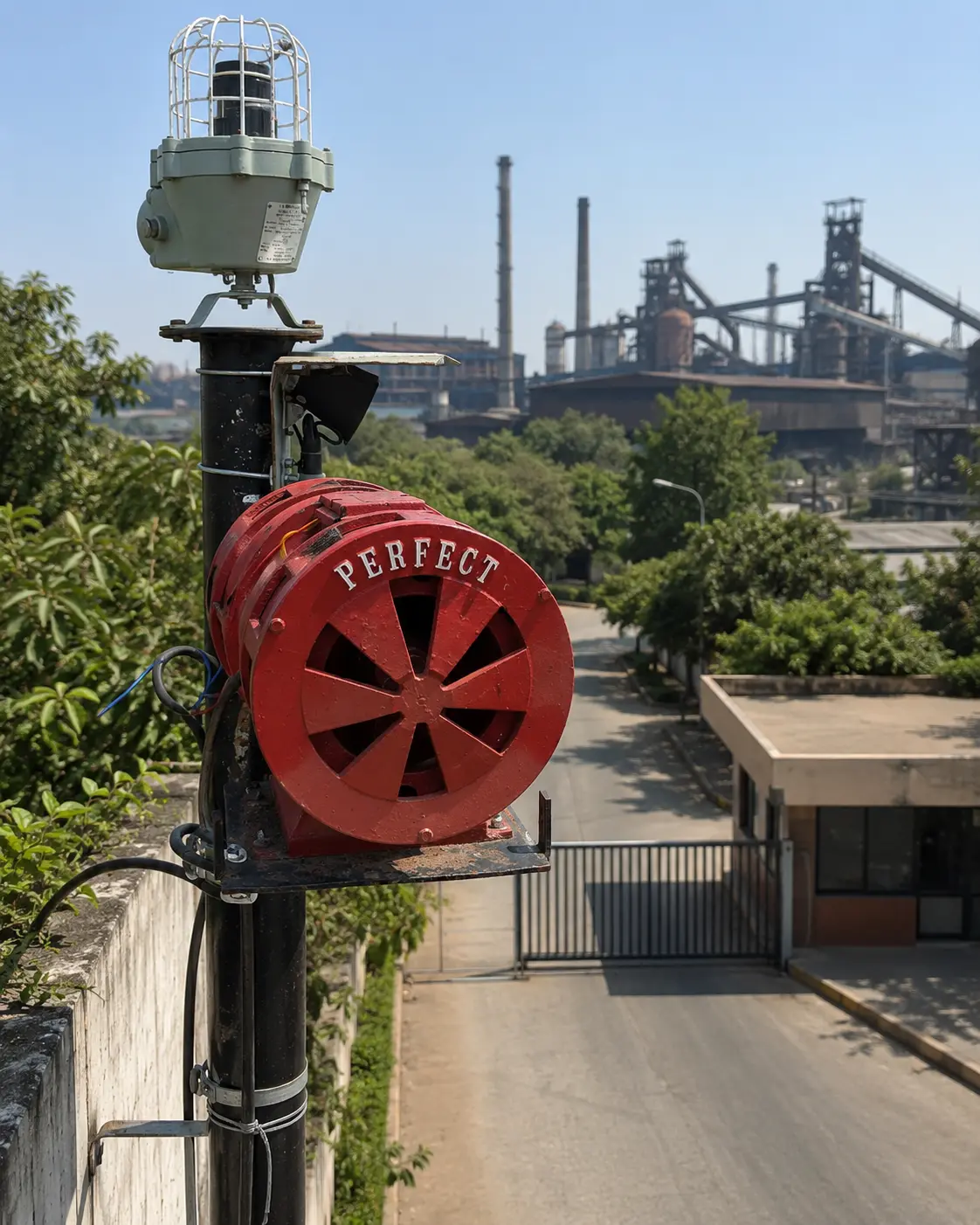

Perfect Industrial motor driven siren — PC-MS series cast aluminium body, outdoor factory rooftop mounting, India
Range
0.5 km to 16 km — 8 models
Output
120–126 dB at 1 metre
Power
415V AC three-phase (standard)
Motor
0.5 HP to 10 HP
Enclosure
IP55, cast aluminium body
Popular model
PC-MS-3D-500 — 5km, 3HP
Get Quote →WhatsApp →
India's workhorse emergency siren

From 500 metres to 16 kilometres. 120–126 dB. Outdoor. All-weather.

Every major Indian industrial facility built in the last 50 years has a motor siren on its roof. The technology is simple, reliable, and proven — a rotating disc driven by an induction motor creates a mechanical wailing or straight-run tone that no electronic device can match for sheer coverage and penetration.

Motor sirens are specified in OISD-117, ERDMP, and most state factory rules as the primary emergency alerting device for plants above a certain size. If your inspector is asking for a motor siren, it is not optional.

Which model do you need?

Select by site coverage requirement

ModelCoverage radiusMotorSupplydB output
PC-MS-1S-050500 m0.05 HP230V AC, single phase112 dB
PC-MS-1S-1001 km0.1 HP230V AC, single phase116 dB
PC-MS-1D-2002 km0.25 HP230V AC, single phase118 dB
PC-MS-1D-3253.25 km0.5 HP230V AC, single phase120 dB
PC-MS-3D-500 ★5 km3 HP415V AC, three phase122 dB
PC-MS-3D-8008 km5 HP415V AC, three phase124 dB
PC-MS-3D-115011.5 km7.5 HP415V AC, three phase125 dB
PC-MS-3D-160016 km10 HP415V AC, three phase126 dB
PC-CBS-1D-5005 km2 HP220V AC, single phase (CBS)122 dB

★ PC-MS-3D-500 is our top-selling model — most Indian factories in the 1–20 acre range select this.

↕ Scroll down to see full specification table on desktop

Why the 5 km model outsells everything else

PC-MS-3D-500 — the Indian factory standard

Why buyers choose 5 km for a 2 km site

Most Indian factories between 5 and 50 acres site area order the 5 km model — not because they need 5 km of coverage, but because the 2× safety margin over their 2.5 km diagonal means the siren is clearly audible at the site boundary even against wind and ambient noise. We ship more PC-MS-3D-500 units than all other models combined.

Buyers ask us

How do I calculate the coverage I need?
Measure the longest straight-line distance from the proposed siren mounting point to the farthest point you need to cover. Add 50% safety margin for wind, buildings, and ambient noise. Select the model whose coverage radius exceeds this figure. Example: site is 1.8 km diagonal → add 50% = 2.7 km → order the 3 km or 5 km model.
Do I need PESO certification for this siren?
For installation in non-hazardous areas (outside Zone 1/Zone 2), PESO certification is not required for motor sirens. PESO certification is required only for equipment installed inside hazardous areas. For OISD-117 compliance, the controller and installation must meet the standard — the siren itself does not require PESO for surface industry applications.
What power supply does it need?
Three-phase 415V AC for all models from 1 HP upward. The 0.5 HP model runs on single-phase 230V AC. The CBS variant (PC-CBS-1D-500) runs on single-phase 220V AC with a capacitor-bank start — used where three-phase is not available but 5 km coverage is needed.
Can I control it remotely?
Yes — the siren is controlled by an automatic siren controller panel, which can accept inputs from: manual push buttons, PLC relay outputs, fire panel relay outputs, and our GSM remote trigger module (SMS from mobile). The siren itself has no intelligence — the controller decides the tone and duration.
What is the installation requirement?
Minimum mounting height: 10 metres for effective coverage. Three-phase power feed with appropriate MCB and motor protection relay. Earthing of the siren body. Concrete or steel mounting gantry capable of supporting the siren weight plus wind load. We supply the installation drawing, foundation design, and commissioning support.
How loud is 122 dB really?
122 dB at 1 metre is approximately as loud as a jet engine at close range. At 100 metres in open air, sound level is approximately 82 dB — clearly audible above typical factory ambient noise of 70–80 dB. At 500 metres, approximately 62 dB — audible in relatively quiet conditions. In practice, buildings, wind, and ambient noise reduce effective audible range to approximately 40–60% of the stated coverage.
Also see: Automatic Factory Siren → GSM Remote Control → Shift Change System → Motor vs Electronic →

Need a motor siren for your factory?

Tell us your coverage distance, ambient noise level, and power supply. We confirm the model within one working day.

Get Quote →
Also see: Automatic Factory Siren →GSM Remote Siren →Shift Change System →
📄 Full model range, installation dimensions & wiring notes →
